Paperless환경, 클라우드 서비스에 필수 아이템
21.5 Inch
BA - TM1
₩ 760,000
BA - TM2
₩ 819,000
BA - TM3
₩ 899,000
- 부드럽고 탁월한 필기감 - 생각대로 쉽게 표현이 가능한 정교한 터치감 - 어떤 사용환경에도 어울리는 수려한 디자인 - Paperless환경, 클라우드 서비스에 필수 아이템 - 무건전지펜 채용 - 1920 x 1080 의 Full HD 해상도
Model : BA - TM1 Specification |
|||
| 모니터사양 | 타블릿 사양 | ||
|---|---|---|---|
| Diagonal size | Tablet Technology | ||
| Pixel | 1920 x 1080(Full HD) | Active Area | 476.64 x 268.11mm |
| Pixel Pitch | 0.248.25 x 0.248.25 | Resolution | 2000lpi |
| Brightness | 250cd/㎡(Typ) | Accuracy | +/-0.5mm |
| Contrast Ratio | 5,000 : 1 (Typ) | Pressure Level | 1024 levels |
| Support Color | 16.7M colors (RGB 8 bit) | Interface | USB 2.0 |
| Response Time | Tr+Tf=16ms | Report Rate | 133 Point/second |
| Viewing Angle | H 178 , V 178 | Max Reading Height | 8mm |
| Power(I/O) | AC100~240VAC,1.5A,/ DC 12V 3A | Max Writing Height | 6mm |
| Size | 518(W) x 323(H) X 38(D) mm | Pen | 무 건전지 펜 |
| Safety | KCC | Operation System | Win7,8/2000/XP/VISTA |

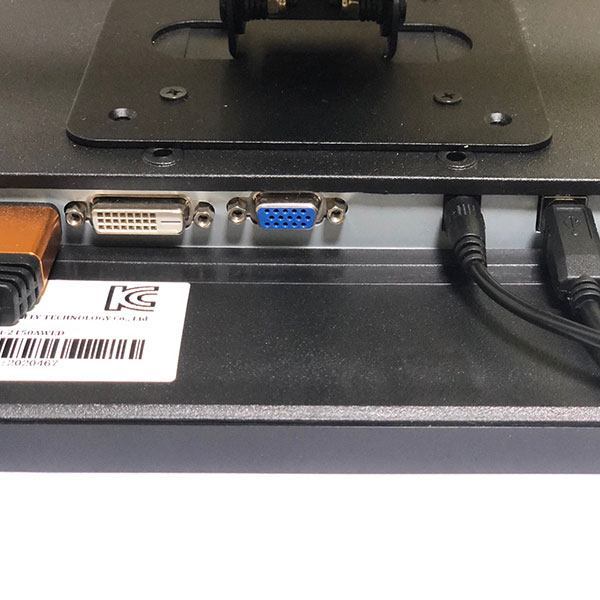

| I/O connector | D-sub*1 (15-pin/analogue RGB), DVI*1, HDMI*1, USB*1, 3.5 stereo, DC Power | ||
Model : BA - TM2 Specification |
|||
| 모니터사양 | 타블릿 사양 | ||
|---|---|---|---|
| Diagonal size | 21.5 inch (16 : 9) | Tablet Technology | Capacitive(정전용량방식) |
| Panel Type | TFT LCD, IPS | Active Area | 476.64 x 268.11mm |
| Pixel | 1920 x 1080(Full HD) | Resolution | 4096 * 4096 |
| Pixel Pitch | 0.248.25 x 0.248.25 | Accuracy | +/-0.5mm |
| Brightness | 250cd/㎡(Typ) | Multi touch | 10point |
| Contrast Ratio | 5,000 : 1 (Typ) | Interface | USB 2.0 |
| Support Color | 16.7M colors (RGB 8 bit) | 터치도구 | 손터치(10포인트 멀티터치) |
| Response Time | Tr+Tf=16ms | Transmittance | 85% ~ 92% |
| Viewing Angle | H 178 , V 178 | Chattering Time | 3 ms(max) |
| Power | DC12V3A | Response Time | 6 ms(max) |
| Size(mm) | 518(W) x 323(H) X 38(D) | OS | Win7,8,10/XP/VISTA |
| Safety | KCC , 공급자적합성확인서 | Input Voltage | AC±5 Volt |
| Surface Hardness | 6 Mohs | ||
| I/O connector | D-sub*1 (15-pin/analogue RGB), DVI*1, HDMI*1, USB*1, DC Power | ||
Model : BA - TM3 Specification |
|||||
| 모니터사양 | PEN touch 사양 | Capacitive touch 사양 | |||
|---|---|---|---|---|---|
| Diagonal size | 21.5 inch (16 : 9) | Tablet Technology | Electromagnetic PEN(전자유도방식) | Tablet Technology | Capacitive(정전용량방식) |
| Panel Type | TFT LCD, IPS | Active Area | 476.64 x 268.11mm | Active Area | 476.64 x 268.11mm |
| Pixel | 1920 x 1080(Full HD) | Resolution | 2000lpi | Resolution | 4096 * 4096 |
| Pixel Pitch | 0.248.25 x 0.248.25 | Accuracy | +/-0.5mm | Accuracy | +/-0.5mm |
| Brightness | 250cd/㎡(Typ) | Pressure Level | 1024 levels | Multi touch | 10point |
| Contrast Ratio | 5,000 : 1 (Typ) | Interface | USB 2.0 | Interface | USB 2.0 |
| Support Color | 16.7M colors (RGB 8 bit) | Report Rate | 133 Point/second | 터치도구 | 손 |
| Response Time | Tr+Tf=16ms | Max Reading Height | 8mm | Transmittance | 85% ~ 92% |
| Viewing Angle | H 178 , V 178 | Max Writing Height | 6mm | Chattering Time | 3 ms(max) |
| Power | DC12V3A | Pen | 무 건전지 펜 | Response Time | 6 ms(max) |
| Size(mm) | 518(W) x 323(H) X 38(D) | OS | Win7,8/2000/XP/VISTA | OS | Win7,8,10/XP/VISTA |
| Safety | KCC | Input Voltage | AC±5 Volt | ||
| Surface Hardness | 6 Mohs | ||||
| I/O connector | D-sub*1 (15-pin/analogue RGB), DVI*1, HDMI*1, USB*1, DC Power | ||||

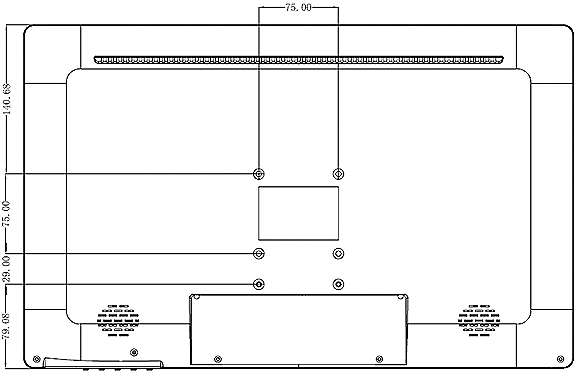

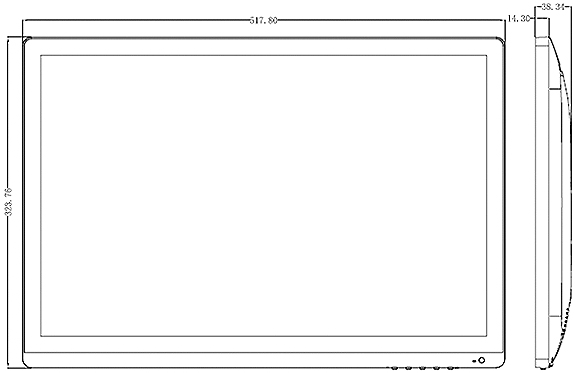

Mechanical Drawing and Dimension
